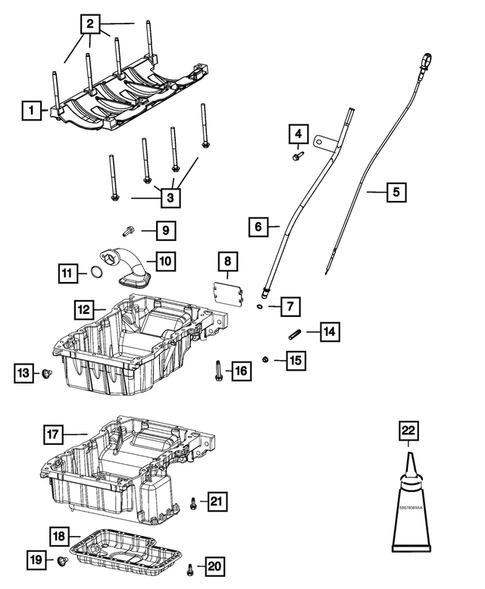

Engine Oiling, Oil Pan and Indicator (Dipstick) for 2020 Jeep Cherokee
No.
Part # / Description / Price
Price
1
Windage Tray
Mopar
Mopar Notes: Engines: 3.2L V6 24V VVT ENGINE W/ESS.
Description: WINDAGE
MSRP $79.90
$54.86
MSRP $79.90
$54.86
2
Hex Flange Head Bolt, Mounting, Inboard Mopar
Mopar Notes: Engines: 3.2L V6 24V VVT ENGINE W/ESS.
Description: Inner Main Bearing Cap To Cylinder Block. Inboard Main Bearing Cap To Cylinder Block. M11x1.50x94.00.
MSRP $6.70
$4.72
MSRP $6.70
$4.72
3
Hex Flange Head Bolt, Mounting, Outboard Mopar
Mopar Notes: Engines: 3.2L V6 24V VVT ENGINE W/ESS.
Description: M8x1.25x97.00. Main Bearing Cap To Cylinder block.
MSRP $4.90
$3.45
MSRP $4.90
$3.45
4
Hex Flange Head Bolt Mopar
Mopar Notes: Engines: 2.0L I4 DOHC DI Turbo Engine w/ ESS. 3.2L V6 24V VVT ENGINE W/ESS. Transmissions: 9-SPD 948TE 4WD AUTO TRANS (MAKE). 9-Spd 948TE FWD/AWD Auto Trans (Make. 9-SPD 9HP48 4WD AUTO TRANS (BUY). 9-SPD 9HP48 FWD/AWD AUTO TRANS (BUY.
MSRP $3.65
$2.60
MSRP $3.65
$2.60
5
MSRP $52.60
$36.11
5
MSRP $47.05
$32.20
6
MSRP $44.45
$30.36
6
MSRP $42.70
$29.21
7
Engine Oil Indicator Tube O Ring Mopar
Mopar Notes: Engines: 3.2L V6 24V VVT ENGINE W/ESS.
MSRP $5.95
$4.30
MSRP $5.95
$4.30
8
Cover, Mounting Mopar
Mopar Notes: Engines: 3.2L V6 24V VVT ENGINE W/ESS.
Description: Torque Converter Bolt Access. Flywheel Bolt Access. Torque Converter Bolt Acess. Torque Conveter Bolt Access. Bedplate Acess. Coolant Port. Ladder Frame Access.
MSRP $3.70
$2.60
MSRP $3.70
$2.60
9
MSRP $8.80
$6.35
10
Oil Pickup Tube Mopar
Mopar Notes: Engines: 3.2L V6 24V VVT ENGINE W/ESS.
Description: OIL PICKUP
MSRP $38.05
$27.35
MSRP $38.05
$27.35
10
MSRP $45.00
$30.76
11
Oil Pick Up Tube O Ring Mopar
Mopar Notes: Engines: 3.2L V6 24V VVT ENGINE W/ESS.
Description: 28.24mm ID.
MSRP $11.25
$8.17
MSRP $11.25
$8.17
12
MSRP $326.00
$212.30
13
Oil Drain Plug Mopar
Mopar Notes: Engines: 2.0L I4 DOHC DI Turbo Engine w/ ESS. 3.2L V6 24V VVT ENGINE W/ESS.
Description: 170 hp. With Gasket. For 05184513AC Oil Pan. Use 10-23-02 And After. Use 10-28-02 And After. [M14x1.50x21.50].
MSRP $15.85
$11.50
MSRP $15.85
$11.50
14
Double Ended Stud, Mounting Mopar
Mopar Notes: Engines: 3.2L V6 24V VVT ENGINE W/ESS.
Description: Lower Oil Pan To Upper. M6x1.00x32. M6x1.0x38.
15
Hex Flange Nut, Mounting, Front Mopar
Mopar Notes: Engines: 2.4L I4 MULTIAIR ENGINE W/ ESS. 2.4L I4 ZERO EVAP M-AIR ENGINE W/ESS. 3.2L V6 24V VVT ENGINE W/ESS.
Description: Channel Lower. M6x1.00. Lines to Hvac. After 01-09-2002. Included in Sliding Door Glass. Glass to Regulator attaching. Glass Assy. to Window Regulator. Glass atttach to regulator.
MSRP $4.90
$3.51
MSRP $4.90
$3.51
16
Hex Head Bolt And Coned Washer, Mounting, Upper Mopar
Mopar Notes: Engines: 3.2L V6 24V VVT ENGINE W/ESS.
Description: Upper Oil Pan To Cylinder Block. M8x1.25x45.00. Engine Oil Pan To Cylinder Block. Upper Oil Pan To Cylinder Plug.
MSRP $3.45
$2.42
MSRP $3.45
$2.42
17
Engine Oil Pan, Upper Mopar
Mopar Notes: Engines: 3.2L V6 24V VVT ENGINE W/ESS.
Description: Upper.
MSRP $308.00
$200.20
MSRP $308.00
$200.20
18
Engine Oil Pan, Lower Mopar
Mopar Notes: Engines: 3.2L V6 24V VVT ENGINE W/ESS.
Description: Lower.
MSRP $70.95
$48.70
MSRP $70.95
$48.70
19
Oil Drain Plug Mopar
Mopar Notes: Engines: 2.0L I4 DOHC DI Turbo Engine w/ ESS. 2.4L I4 MULTIAIR ENGINE W/ ESS. 2.4L I4 ZERO EVAP M-AIR ENGINE W/ESS. 3.2L V6 24V VVT ENGINE W/ESS.
Description: [M18 x 1.0]. [M14x1.50x21.50]. Used Up To 05/22/2020. -NAM ( with Out Mexico).
MSRP $14.45
$10.29
MSRP $14.45
$10.29
20
Hex Head Bolt And Coned Washer, Mounting, Lower Mopar
Mopar Notes: Engines: 2.0L I4 DOHC DI Turbo Engine w/ ESS. 3.2L V6 24V VVT ENGINE W/ESS.
MSRP $5.20
$3.69
MSRP $5.20
$3.69
22
Rtv Gray Sealer Mopar
Mopar Notes: Engines: 3.2L V6 24V VVT ENGINE W/ESS.
Description: For Cover Plate. Three Bond Type. Engine Oil Pan to Cylinder Block.
MSRP $32.80
$23.72
MSRP $32.80
$23.72
No.
Part # / Description / Price
Price
1

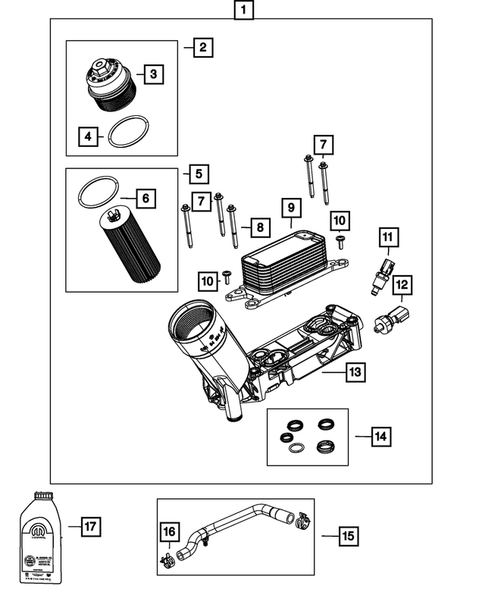

Engine Oil Filter Adapter Mopar
Mopar Notes: Engines: 3.2L V6 24V VVT ENGINE W/ESS.
Description: Includes filter, cooler and oil cap. This oil filter housing does NOT include the sensors.
MSRP $259.00
$170.50
MSRP $259.00
$170.50
2
MSRP $31.50
$22.81
5
Engine Oil Filter Kit Mopar
Mopar Notes: Engines: 3.2L V6 24V VVT ENGINE W/ESS.
Description: Important 2014 new part number.
MSRP $10.35
$7.50
MSRP $10.35
$7.50
5
Engine Oil Filter Kit Mopar
Mopar Notes: Engines: 3.2L V6 24V VVT ENGINE W/ESS.
Description: Australia,India,Japan,South Korea Markets.
11
Fluid Temperature Sensor Mopar
Mopar Notes: Engines: 2.4L I4 MULTIAIR ENGINE W/ ESS. 2.4L I4 ZERO EVAP M-AIR ENGINE W/ESS. 3.2L V6 24V VVT ENGINE W/ESS.
Description: Engine Oil. Engine Coolant Temerature. Coolant Temp. In water pump.
MSRP $67.90
$46.63
MSRP $67.90
$46.63
12
Oil Pressure Sensor Mopar
Mopar Notes: Engines: 3.2L V6 24V VVT ENGINE W/ESS.
Description: Pressure & Temperature To Oil Adapter. Pressure & Temperature At Oil Adapter.
MSRP $86.75
$57.78
MSRP $86.75
$57.78
14
O Ring Kit Mopar
Mopar Notes: Engines: 3.2L V6 24V VVT ENGINE W/ESS.
Description: Engine Oil Filter Adapter O-ring kit
MSRP $14.20
$10.29
MSRP $14.20
$10.29
15
Oil Cooler Outlet Hose Mopar
Mopar Notes: Engines: 3.2L V6 24V VVT ENGINE W/ESS.
Description: OIL COOLER OUTLET
MSRP $52.60
$36.28
MSRP $52.60
$36.28
17
5w20 Engine Oil Mopar
Mopar Notes: Engines: 3.2L V6 24V VVT ENGINE W/ESS.
Description: 5w20 Quart [32 Fluid Ounces]. Sold as individual quarts. Can't be shipped international or express.
MSRP $10.00
$7.26
MSRP $10.00
$7.26
No.
Part # / Description / Price
Price
1

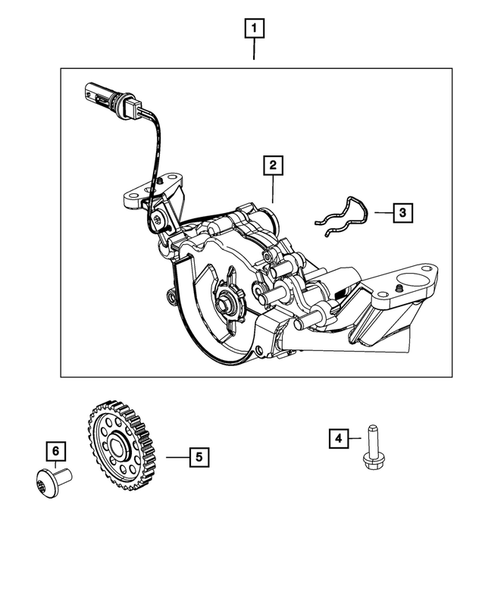

Engine Oil Pump Kit Mopar
Mopar Notes: Engines: 3.2L V6 24V VVT ENGINE W/ESS.
Description: After 03/07/2016.
MSRP $321.00
$209.00
MSRP $321.00
$209.00
3
Clip Mopar
Mopar Notes: Engines: 3.2L V6 24V VVT ENGINE W/ESS.
Description: Locking Oil Pump Connector To Cylinder Block. Oil Pump Pressure.
MSRP $3.70
$2.60
MSRP $3.70
$2.60
4
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 2.4L I4 MULTIAIR ENGINE W/ ESS. 2.4L I4 ZERO EVAP M-AIR ENGINE W/ESS. 3.2L V6 24V VVT ENGINE W/ESS.
Description: Oil Pump. M6x1.00x25.00. Water connector assy to cyl block. Pump to Timing Belt Cover. Housing. [M6x1.0x25.0].
4
Screw & washer Mopar
Mopar Notes: Engines: 2.4L I4 MULTIAIR ENGINE W/ ESS. 2.4L I4 ZERO EVAP M-AIR ENGINE W/ESS. 3.2L V6 24V VVT ENGINE W/ESS.
Description: Hex head M6x1.00x25.00. These are sold individually, as one single screw. Pictures are for reference purposes only.
MSRP $6.85
$4.90
MSRP $6.85
$4.90
5
MSRP $109.00
$71.26
6
Recessed Torx Head Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 3.2L V6 24V VVT ENGINE W/ESS.
Description: M8x1.25x16.00. Oil Pump To Drive Gear. [M8x16]. Oil Pump Sprocket. Sprinter. Intake Support Bracket To Cylinder Head. Not sold as a set.
MSRP $4.50
$3.21
MSRP $4.50
$3.21
