Automatic Transmission / Transaxle and Torque Converter for 2017 Chrysler Pacifica

Vehicle

2017 Chrysler Pacifica Change Vehicle

Categories

Browse Categories

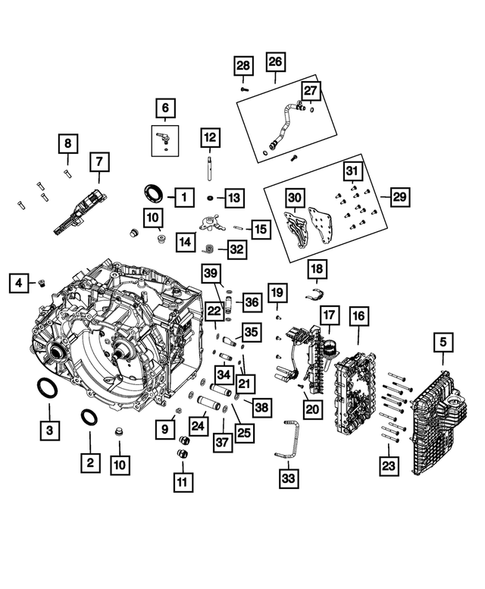

Automatic Transmission / Transaxle and Torque Converter for 2017 Chrysler Pacifica #0 Automatic Transmission / Transaxle and Torque Converter for 2017 Chrysler Pacifica #1 Automatic Transmission / Transaxle and Torque Converter for 2017 Chrysler Pacifica #2
Automatic Transmission / Transaxle and Torque Converter for 2017 Chrysler Pacifica #0
No.
Part # / Description / Price
Price
N/A
Pressure Sensor

MSRP $61.10
$45.81
MSRP $61.10
$45.81
1
Differential Seal

**Order updated part number 68410990AA**

MSRP $26.95
$21.00
MSRP $26.95
$21.00
2
Impeller Seal

MSRP $21.50
$16.77
MSRP $21.50
$16.77
4
Transmission Case Plug

Oil Fill Plug

M14x1.50x12.00.

MSRP $9.25
$7.22
MSRP $9.25
$7.22
5
Transmission Oil Pan

Includes Gasket.

MSRP $92.50
$66.60
MSRP $92.50
$66.60
6
Transmission Vent

MSRP $9.95
$7.74
MSRP $9.95
$7.74
7
Transmission Control Module 1

MSRP $209.00
$150.00
MSRP $209.00
$150.00
8
Pan Head Screw

Hose to Pump. M8x1.25x22.00. Knock sensor to block. Knock Sensor To Engine. Pressure Line to Pump Attachment. Detonation Sensor To Engine Block.

MSRP $1.50
$1.17
MSRP $1.50
$1.17
9
Hex Bolt

[m10x1.00x8.00].

MSRP $4.70
$3.64
MSRP $4.70
$3.64
10
Transmission Drain Plug

Transmission Case Plug

Drain plug. [M18 x 1.5]. [m18x1.50x12.0].

MSRP $11.75
$9.17
MSRP $11.75
$9.17
10
Transmission Case Plug

[M18 x 1.5]. [m18x1.50x12.0].

MSRP $6.20
$4.81
MSRP $6.20
$4.81
11
Quick Connect Fitting

1/2 x 3/4 - 16. At Transmission.

MSRP $18.10
$14.11
MSRP $18.10
$14.11
12
Manual Lever Shaft Assembly

Manual Lever Shaft Assy

MSRP $27.20
$21.19
MSRP $27.20
$21.19
13
Manual Valve Lever Seal

MSRP $4.45
$3.45
MSRP $4.45
$3.45
14
Gearshift Detent

Includes Pin Item #16.

MSRP $13.85
$10.79
MSRP $13.85
$10.79
15
Roll Pin

MSRP $7.35
$5.72
MSRP $7.35
$5.72
16
Complete Valve Body 1

After 6/11/2016.

MSRP $475.00
$336.30
MSRP $475.00
$336.30
16
Complete Valve Body, Remanufactured 1

Up To 6/11/2016.

MSRP $462.00
$326.86
MSRP $462.00
$326.86
16
Complete Valve Body 1

Up To 6/11/2016.

MSRP $525.00
$362.25
MSRP $525.00
$362.25
17
Transmission Range Sensor

MSRP $107.00
$77.04
MSRP $107.00
$77.04
18
Wiring Harness Retainer

MSRP $2.50
$1.95
MSRP $2.50
$1.95
19
Bolt

M5x12.00. M5x0.8x12.50.

MSRP $0.50
$0.39
MSRP $0.50
$0.39
20
Screw

M5x0.80x14.00.

MSRP $2.20
$1.69
MSRP $2.20
$1.69
21
O-Ring

MSRP $5.85
$4.55
MSRP $5.85
$4.55
22
O-Ring

MSRP $4.00
$3.12
MSRP $4.00
$3.12
23
6 Lobe Screw

M6x1.00x59.00. Valve Body to Transmssion. Valve Body to Transmission.

MSRP $2.20
$1.69
MSRP $2.20
$1.69
24
Oil Feed Tube

Includes O-Rings. 76.00MM.

MSRP $8.25
$6.44
MSRP $8.25
$6.44
25
Tube

Includes O-Rings. 72.00MM.

MSRP $8.25
$6.44
MSRP $8.25
$6.44
26
Oil Feed Tube

X87+dmd. Includes O-Rings.

MSRP $20.75
$16.19
MSRP $20.75
$16.19
27
O-Ring

Serviced With Tube Item 30.

MSRP $1.95
$1.50
MSRP $1.95
$1.50
28
6 Lobe Recessed Head Bolt

M6x1.00x22.00. Upper Oil Pan To Cylinder Block. Upper Oil Pan To Rear Oil Seal Retainer. Oil Pan To Rear Crankshaft Oil Seal Retainer.

MSRP $1.10
$0.85
MSRP $1.10
$0.85
29
Cover Kit

MSRP $10.45
$8.13
MSRP $10.45
$8.13
30
Transmission Case Gasket

MSRP $19.50
$15.21
MSRP $19.50
$15.21
31
6 Lobe Screw

M6x1.00x12.00. M6x1.00x15.20.

MSRP $1.25
$0.98
MSRP $1.25
$0.98
32
Parking Sprag Return Spring

MSRP $4.70
$3.64
MSRP $4.70
$3.64
33
Oil Feed Tube

MSRP $38.25
$29.84
MSRP $38.25
$29.84
34
Oil Feed Tube

Includes O-Rings. 51.60MM.

MSRP $5.75
$4.49
MSRP $5.75
$4.49
35
Oil Feed Tube

44.40MM, Includes O-Rings.

MSRP $14.95
$11.64
MSRP $14.95
$11.64
36
Oil Feed Tube

Includes O-Rings. 41.40MM.

MSRP $6.10
$4.75
MSRP $6.10
$4.75
37
O Ring

MSRP $2.35
$1.82
MSRP $2.35
$1.82
38
O Ring

MSRP $2.35
$1.82
MSRP $2.35
$1.82
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
No.
Part # / Description / Price
Price
1
With Torque Converter Transmission 1

Up to 06/11/16.

MSRP $4,140.00
$3,570.75
MSRP $4,140.00
$3,570.75
1
With Torque Converter Transmission 1

After 06/11/16.

MSRP $3,680.00
$3,174.00
MSRP $3,680.00
$3,174.00
1
Discontinued
1
With Torque Converter Transmission, Remanufactured 1

After 06/11/16.

MSRP $2,555.00
$2,202.25
MSRP $2,555.00
$2,202.25
2
Torque Converter 1

TORQUE

MSRP $717.00
$494.50
MSRP $717.00
$494.50
3
Hex Head Header Point Screw

.312-24x.44. Torque Converter To Flexplate. Driveplate To Torque Cconverter.

MSRP $4.25
$3.32
MSRP $4.25
$3.32
4
Automatic Transmission Fluid

Quart. Liter.

MSRP $29.50
$23.01
MSRP $29.50
$23.01
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
No.
Part # / Description / Price
Price
1
Torque Converter 1

TORQUE

MSRP $717.00
$494.50
MSRP $717.00
$494.50
2
Hex Head Header Point Screw

.312-24x.44. Torque Converter To Flexplate. Driveplate To Torque Cconverter.

MSRP $4.25
$3.32
MSRP $4.25
$3.32
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
